EnGo Illumo — Smart Off-Grid Solar Street Light

High-Efficiency Solar Street Pole for Smart Cities

As cities and industrial developers transition to zero-emission infrastructure, the EnGo Illumo solar street light delivers unmatched energy independence, high lumen output, and low total cost of ownership. Engineered in the USA with heavy-duty powder-coated galvanized steel, this off-grid lighting pole eliminates expensive trenching, cabling, and utility bills for municipal roads, highways, commercial parking lots, and urban communities.

Illumination EnGo Light Module
Monitoring EnGo Monitor System
Connectivity EnGo Connect 4G/5G
100% Off-Grid Solar Powered
Remote Management & Sensing
Trenchless & Fast Installation
Adaptive Motion Sensors
LiFePO4 High-Cycle Battery
180 lm/W LED Fixture Efficacy

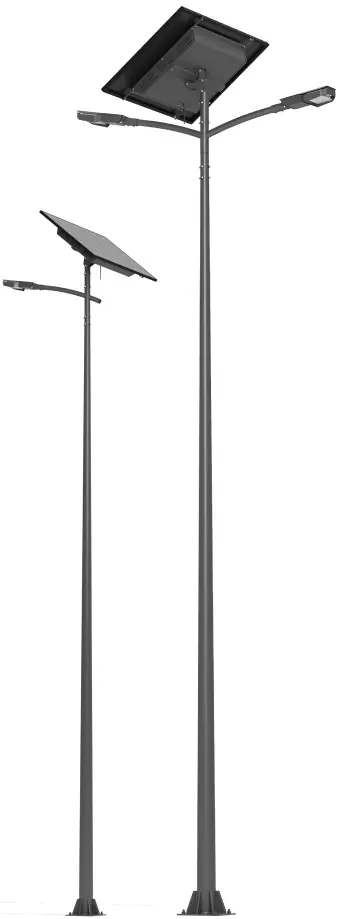

EnGo Illumo Smart Solar Street Light Pole Installation

Technical Data Sheet

Certified Product Data Sheet
EnGo Illumo 4 (4m / 13ft Pole Height) −
Pole Structural Material
Powder-coated galvanized steel
Pole Height
4m / 13ft
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
LED Light Power Output
20 W – 30 W
PV Solar Module Rating
200 Wp Monocrystalline
Solar Glass Coating
Self-cleaning tempered safety glass
Battery Storage Capacity
Lithium LiFePO4 12V 52Ah–104Ah
LED Efficacy (IP67)
Up to 180 lm/W
Color Temperature (CCT)
2200 K – 4000 K Warm to Daylight
EnGo Illumo 6 (6m / 20ft Pole Height) +
EnGo Illumo 8 (8m / 26ft Pole Height) +
EnGo Illumo 4 Double (4m / 13ft Dual Fixture) −
Pole Structural Material
Powder-coated galvanized steel
Pole Height
4m / 13ft
Light Power Configuration
2 x 20 W Dual Fixtures
PV Solar Module Rating
200 Wp Monocrystalline
Battery Storage Capacity
Lithium LiFePO4 12V 52Ah–104Ah
LED Efficacy (IP67)
Up to 180 lm/W
EnGo Illumo 6 Double (6m / 20ft Dual Fixture) +
EnGo Illumo 8 Double (8m / 26ft Dual Fixture) +

Heritage & Decorative Customization Options

For urban restoration projects, historic districts, and premier commercial properties, EnGo Illumo offers traditional aesthetic enhancements without compromising state-of-the-art solar energy efficiency.

Historic Arm Solar Light Fixture Option

Historic Arm Bracket Option

Arched arm design configured with classic lantern housing, ideal for traditional streetscapes and heritage conservation areas.

Historic Cast Aluminum Base Option

Historic Decorative Base Option

Heavy-duty cast aluminum base sleeve featuring traditional architectural motifs to seamlessly match municipal historic aesthetics.

Why B2B Procurement Chooses EnGo Illumo

Designed for maximum durability and uninterrupted operation across extreme climate conditions worldwide.

1. Streamlined Structural Profile

EnGo Illumo combines aerodynamic solar panel positioning with an ultra-compact frame, delivering structural stability and visual appeal in any urban setting.

2. Fully Integrated Energy Management System

The battery enclosure and MPPT solar charge controller are consolidated within a weather-tight structural box, optimizing power conversion efficiency and simplifying field maintenance.

3. Climate Resilience & Passive Cooling

Equipped with a thermal dissipation chassis, EnGo Illumo guarantees consistent lithium battery protection and peak LED performance from sub-zero winters (-40°C) to extreme desert heat (+70°C).

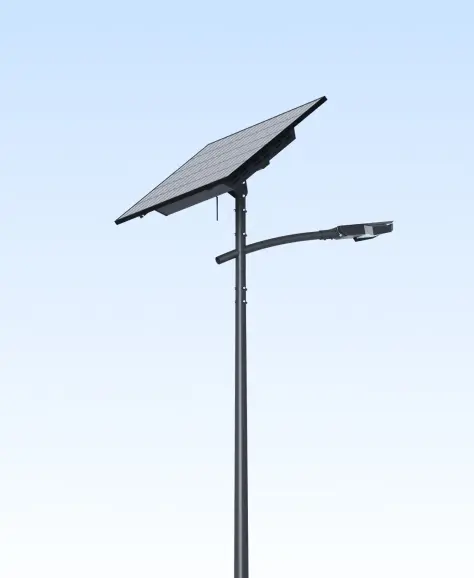

EnGo Illumo Solar Street Light Benefits and Thermal System

Flexible Height & Output Models Available Upon Request

Our engineering team provides custom pole heights, light distribution profiles, and autonomous battery sizing tailored to regional solar radiation profiles.

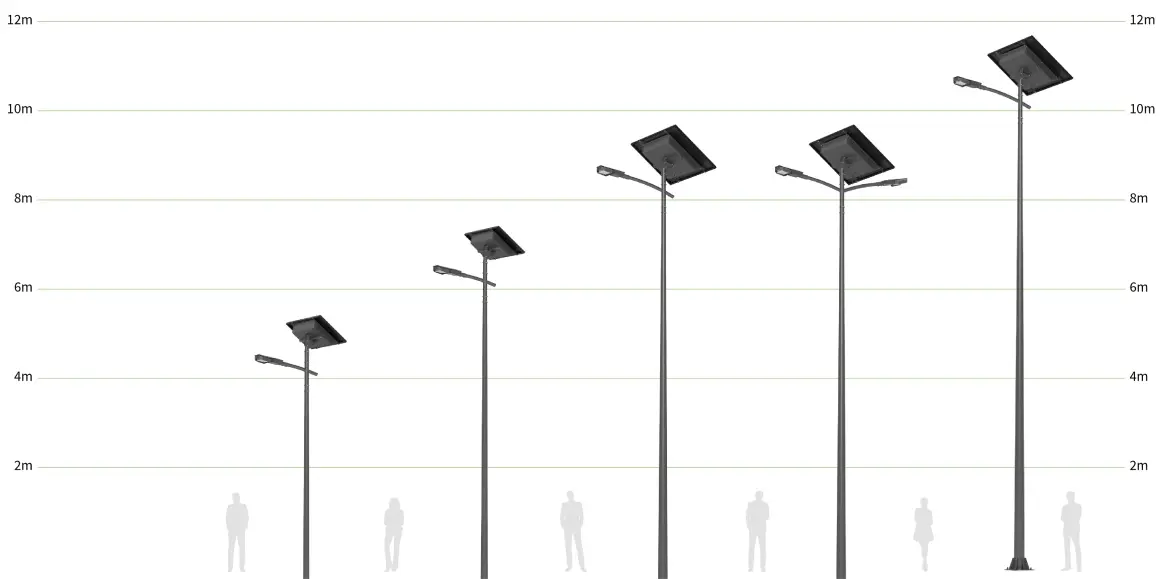

EnGo Illumo Solar Light Pole Height Variations

Illumo 4

Light Source
6 High-Eff. LED Units
Solar Operating Power
20 W
Luminous Flux
3,150 lm
Pole Height
4.0 m
Light Spot Height
4.6 m

Illumo 6

Light Source
6 High-Eff. LED Units
Solar Operating Power
20 W - 30 W
Luminous Flux
3,150 lm – 4,800 lm
Pole Height
6.0 m
Light Spot Height
6.6 m

Illumo 8

Light Source
12 High-Eff. LED Units
Solar Operating Power
40 W - 50 W
Luminous Flux
6,400 lm
Pole Height
8.0 m
Light Spot Height
8.6 m

Illumo 8 Double

Light Source
Dual 12-LED Heads
Solar Operating Power
2 x 40 W
Luminous Flux
12,800 lm Total
Pole Height
8.0 m
Light Spot Height
8.6 m

Illumo 10

Light Source
High-Output Modular LED
Solar Operating Power
60 W - 80 W
Luminous Flux
Up to 12,800 lm
Pole Height
10.0 m
Light Spot Height
10.6 m

See EnGo Illumo in Real-World Operation

Ready to Upgrade Your Infrastructure with EnGo Illumo?

Partner with EnGoPlanet for comprehensive design, engineering, direct factory supply, and utility-scale solar lighting financing solutions.

Get a Quote
